The Story

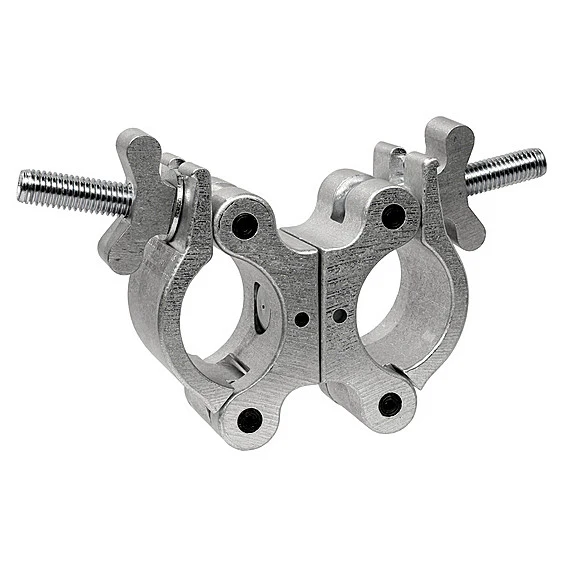

The Swivel Coupler will fasten from 1-1/4" pipe (1.660" OD) to 2.050" OD truss tube. The Swivel-Coupler has wide wing nuts for fastening the clamp to the pipe or tube.
The Swivel Coupler can be locked into a 90 degree fixed coupler by adding an optional 7/32″ × 2″ spirol pin (see Coupler Spare Parts).
The Swivel Coupler is available with a Steel Wingnut(SW) or Stainless Steel Hardware (SS) option.
Minimum Size
1.25" pipe, 1.66" OD pipe
Maximum Size
1.5" pipe, 1.90" OD pipe, 2" OD truss tube
Working Load Limit
1,100 Pounds 500kg
Weight
2.2 Pounds
Case Quantities
12
What is a Cheeseboro? Cheeseborough clamps aka Cheeseboro, Scaffold Clamps, Couplers, Swivels and even Cheese-burger or Burger Clamps. The name is believed to derive from the Chesebro-Whitman manufacturing company of New York. The devices are used for connecting iron pipes or aluminum tubes. They come in two styles; rigid (aka fixed 90¡) or Swivel.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Swivel Coupler will fasten from 1-1/4" pipe (1.660" OD) to 2.050" OD truss tube. The Swivel-Coupler has wide wing nuts for fastening the clamp to the pipe or tube.
The Swivel Coupler can be locked into a 90 degree fixed coupler by adding an optional 7/32″ × 2″ spirol pin (see Coupler Spare Parts).
The Swivel Coupler is available with a Steel Wingnut(SW) or Stainless Steel Hardware (SS) option.
Minimum Size
1.25" pipe, 1.66" OD pipe
Maximum Size
1.5" pipe, 1.90" OD pipe, 2" OD truss tube
Working Load Limit
1,100 Pounds 500kg
Weight
2.2 Pounds
Case Quantities
12
What is a Cheeseboro? Cheeseborough clamps aka Cheeseboro, Scaffold Clamps, Couplers, Swivels and even Cheese-burger or Burger Clamps. The name is believed to derive from the Chesebro-Whitman manufacturing company of New York. The devices are used for connecting iron pipes or aluminum tubes. They come in two styles; rigid (aka fixed 90¡) or Swivel.
