PMI SMC Large Locking D Steel Carabiner – NFPA

The SMC Large Locking D Steel Carabiner – NFPA is ideal for usage by fire and rescue professionals. This carabiner is available in a variety of finishes (original steel, heat-treated, black). While the zinc-coated carabiner style is great for tactical operations, we offer steel stainless models that are best used in corrosive environments.

This product has a large gate opening for easy fitting over litter rails. All models have stainless steel gates and sleeves for additional strength.

---

Features

• Large gate opening
• Stainless Steel gate and sleeve
• Variety of finishes for different applications
• NFPA 1983 (2012), G
• Berry Compliant
• Made in the USA

---

Specs

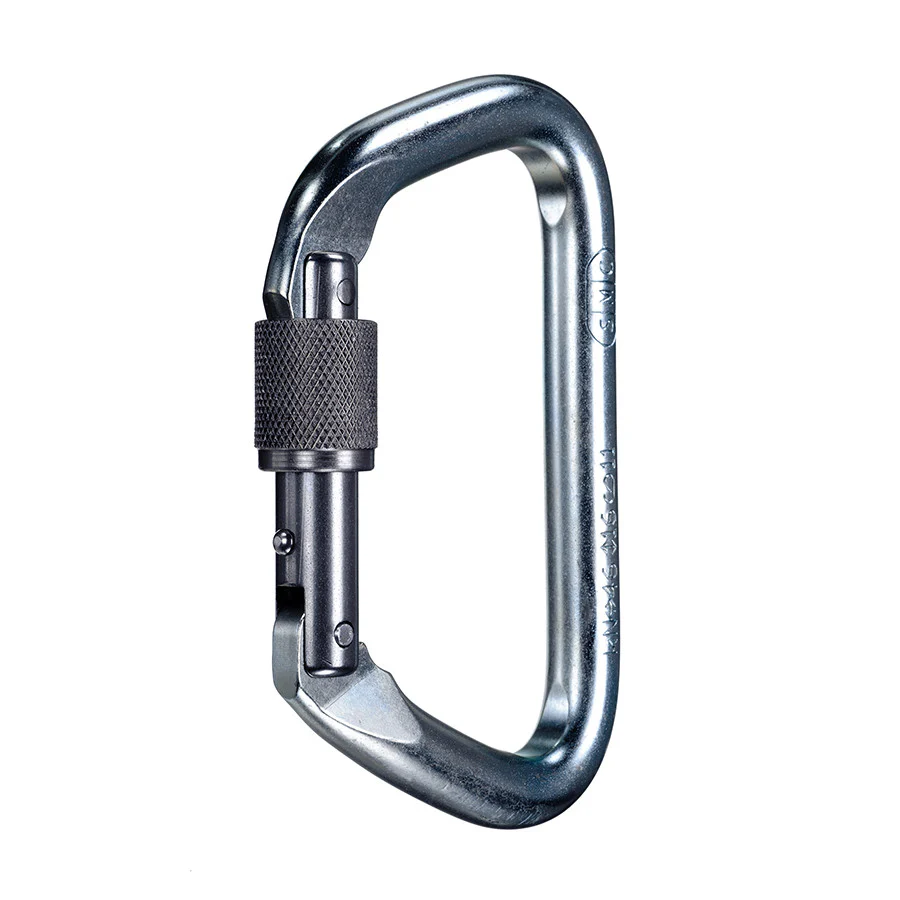

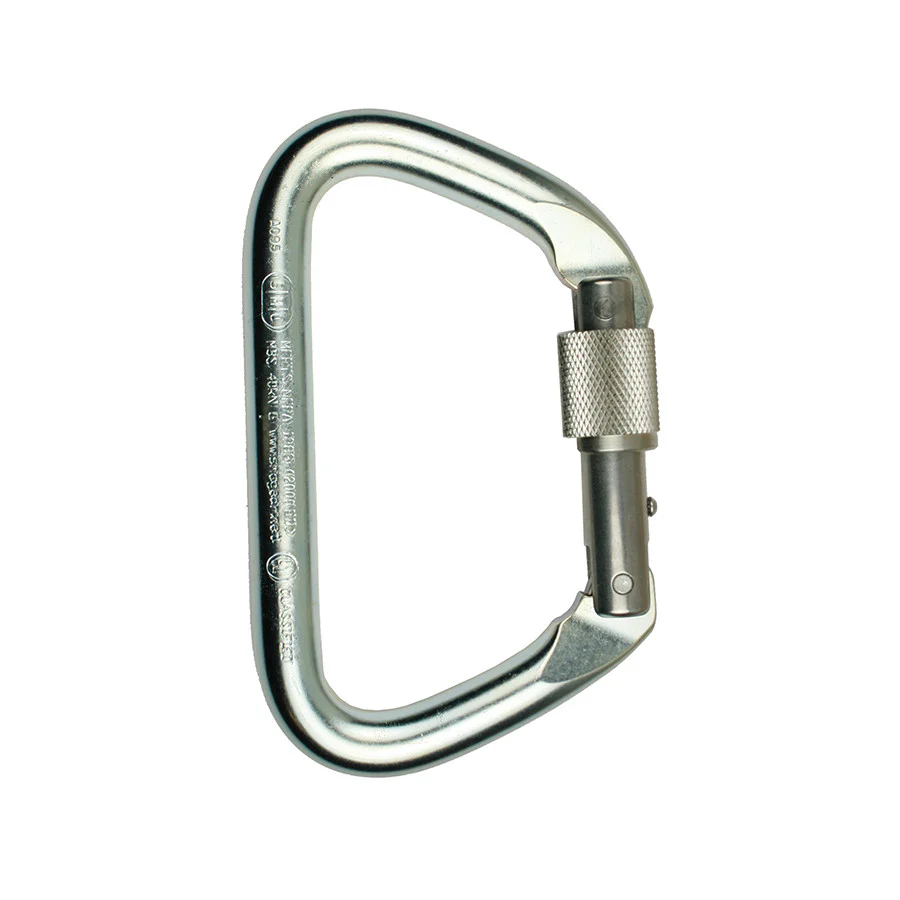

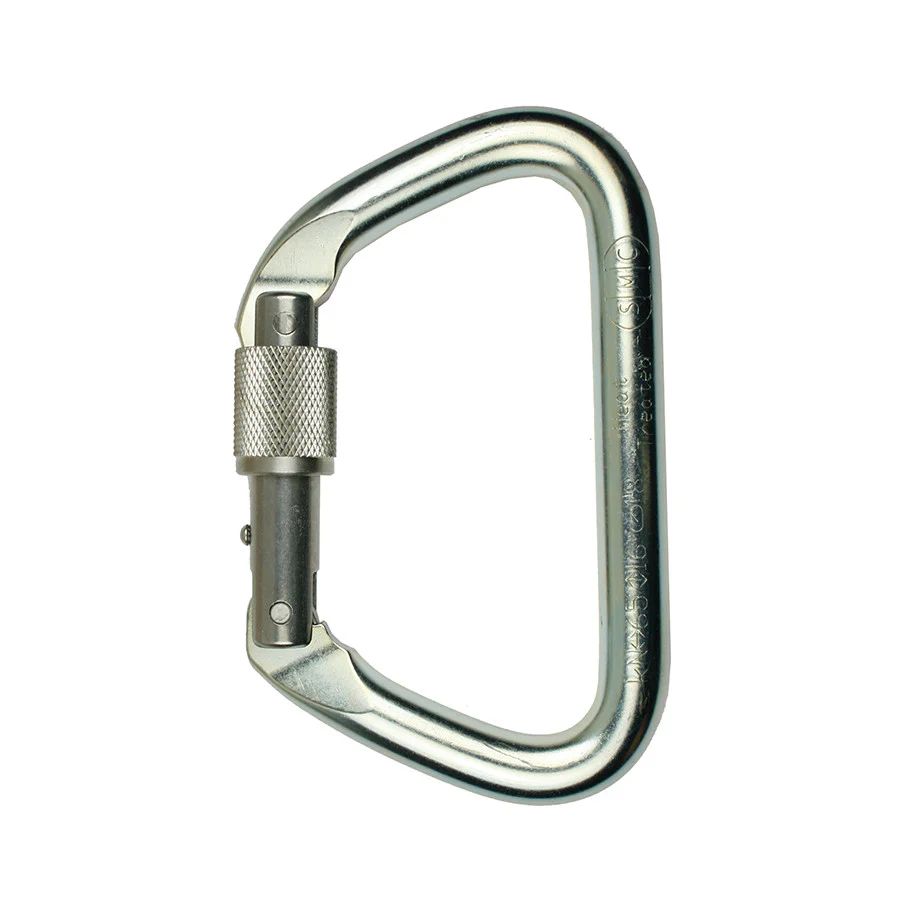

Original

• Type: Screw Lock
• MBS: 46 kN (10341 lbf)
• Weight: 10.6 oz (300 g)
• Length: 5.04" (12.8 cm)
• Width: 2.97" (7.5 cm)
• Gate Opening: 1.20" (30.5 mm)
• Major Axis: 46 kN (10341 lbf)
• Minor Axis: 16 kN (3600 lbf)
• Gate Open: 11 kN (2473 lbf)
• Material: Zinc plated Steel

Heat-Treated

• Type: Screw Lock
• MBS: 65 kN (14613 lbf)
• Weight: 10.6 oz (300 g)
• Length: 5.04" (12.8 cm)
• Width: 2.97" (7.5 cm)
• Gate Opening: 1.20" (30.5 mm)
• Major Axis: 65 kN (14613 lbf)
• Minor Axis: 16 kN (3600 lbf)
• Gate Open: 18 kN (4046 lbf)
• Material: Zinc plated Steel

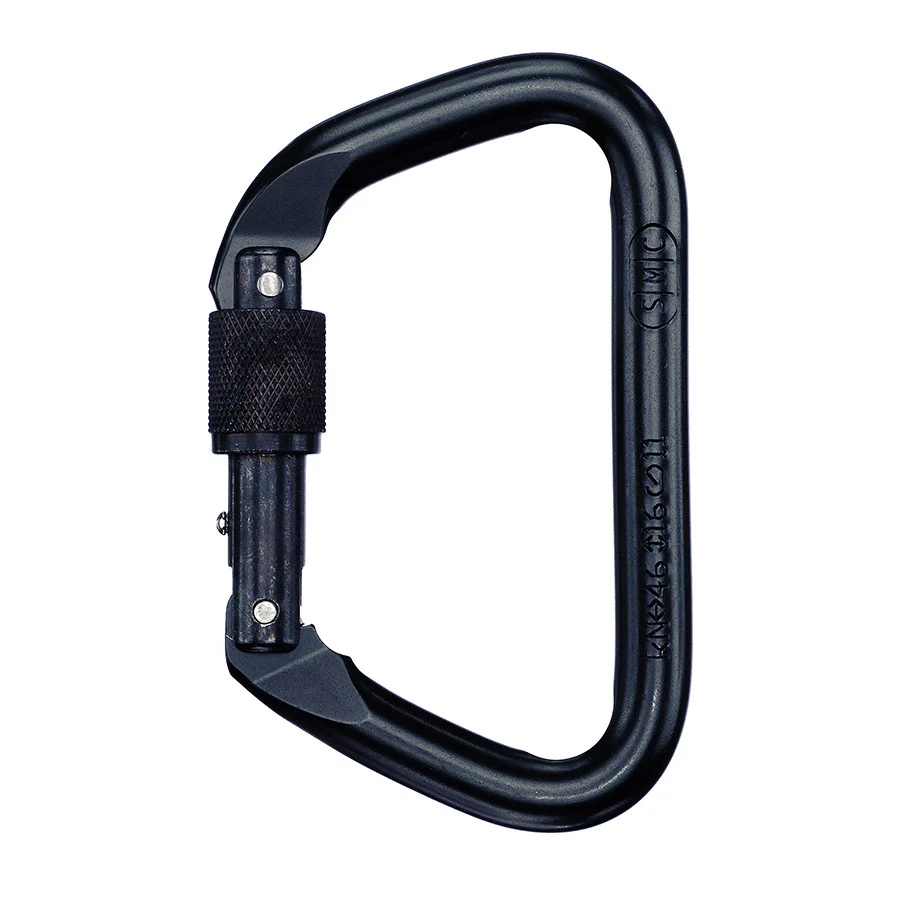

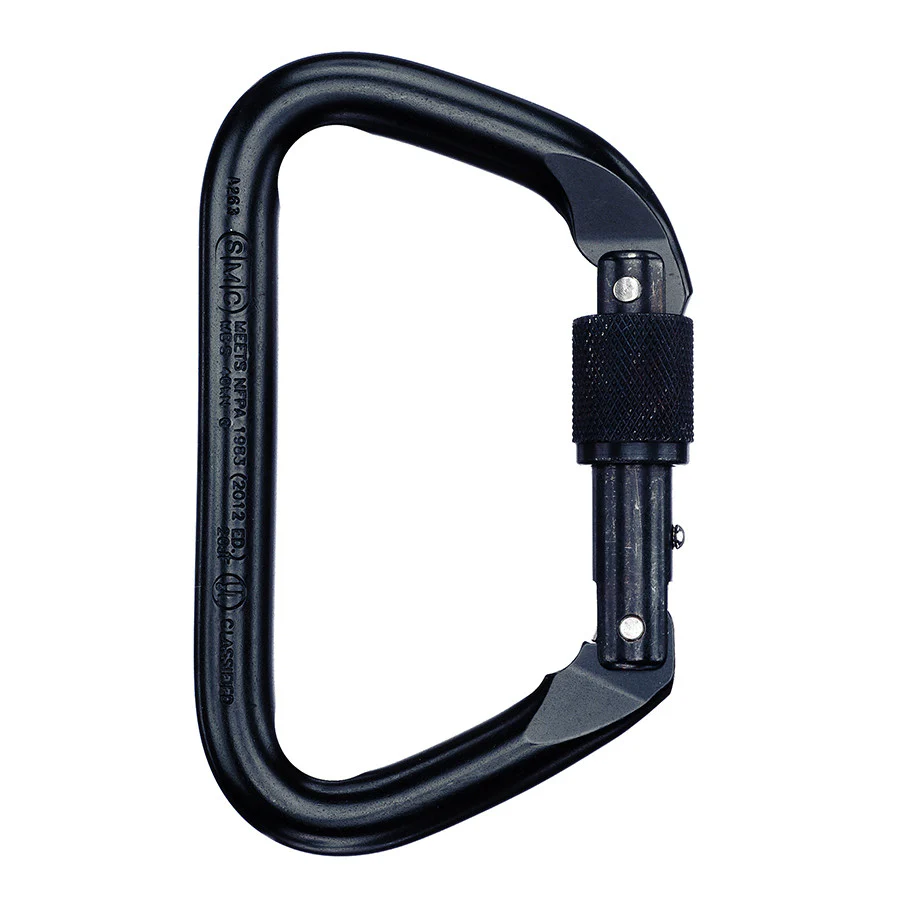

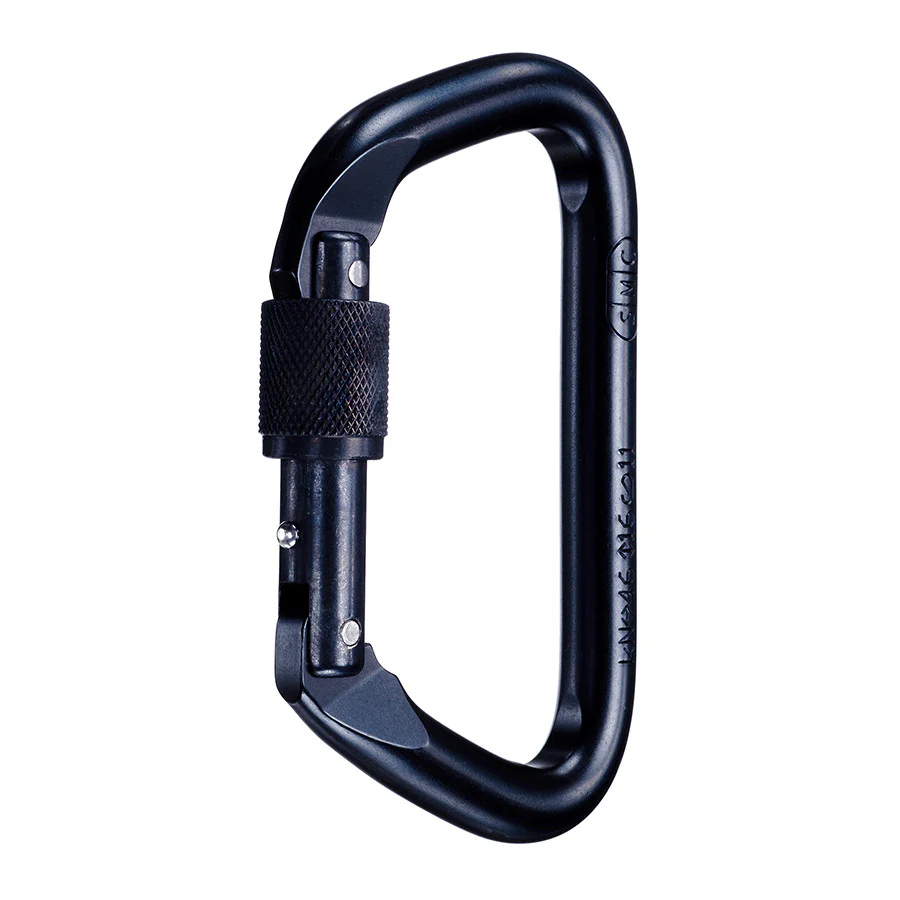

Black

• Type: Screw Lock
• MBS: 46 kN (10341 lbf)
• Weight: 10.6 oz (300 g)
• Length: 5.04" (12.8 cm)
• Width: 2.97" (7.5 cm)
• Gate Opening: 1.20" (30.5 mm)
• Major Axis: 46 kN (10341 lbf)
• Minor Axis: 16 kN (3600 lbf)
• Gate Open: 11 kN (2473 lbf)
• Material: Zinc plated Steel
