Doughty All Weather Doughty Hook Clamp
Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts which make it ideal for use at outdoor events.
The industry standard slimline half coupler. A high tensile extruded aluminium clamp that is suitable for 48-51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 750Kg and is 50mm (1.97″) wide. Slotted to hold captive an M12 nut or bolt head and supplied with an A4 grade stainless steel M12 X 45 bolt and wing nut.
Ideal for use on trussing as it will not damage the cords. Supplied with a sachet of Copper Grease to prevent Stainless threads galling, and available in a powder coated black finish.

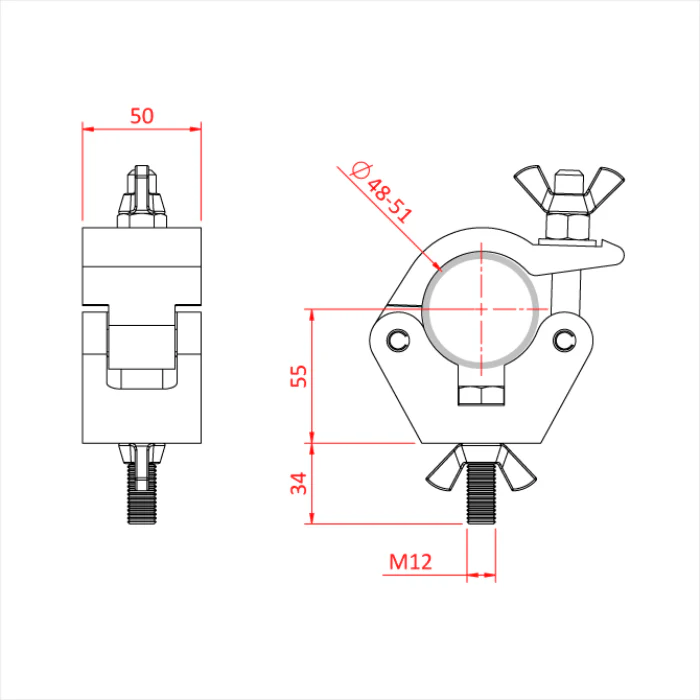

Specifications
- Clamp Width: 50mm (1.97")
- Finish: Black Powder Paint
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- WLL: 750Kg
Downloads
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Doughty All Weather Doughty Hook Clamp
Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts which make it ideal for use at outdoor events.
The industry standard slimline half coupler. A high tensile extruded aluminium clamp that is suitable for 48-51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 750Kg and is 50mm (1.97″) wide. Slotted to hold captive an M12 nut or bolt head and supplied with an A4 grade stainless steel M12 X 45 bolt and wing nut.
Ideal for use on trussing as it will not damage the cords. Supplied with a sachet of Copper Grease to prevent Stainless threads galling, and available in a powder coated black finish.
Specifications
- Clamp Width: 50mm (1.97")
- Finish: Black Powder Paint
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- WLL: 750Kg
